Callis 32
for the love of speed
Once we had objective performance data it became clear that we had to do it!
When 32" started to become a possibility for the next generation of the Callis, we saw challenges and an opportunity at the same time. Once we had objective performance data, it became clear that we had to do it! Between 8 and 16 Watts (depending on terrain and tire) at 35 km/h is more than we could find elsewhere.
Read our analysis
on rolling resistance.
Find your
perfect setup.
Mean Elevation is the reference line: the closer a lap follows it, the better the model matches the real elevation profile.
We used the Virtual Elevation Method on an out-and-back course that can be characterized as a bumpy category 1 gravel road.
As an energy-equivalence illustration, extrapolating this difference over the distance of Unbound 200 would correspond to roughly 463 m of elevation gain. *
Expressed in more familiar terms, at 35 km/h and an 86 kg system weight, the measured difference corresponds to an 11.7 W reduction in rolling resistance.
*This is not a prediction as surface conditions vary considerably, but it illustrates the magnitude of the measured difference.

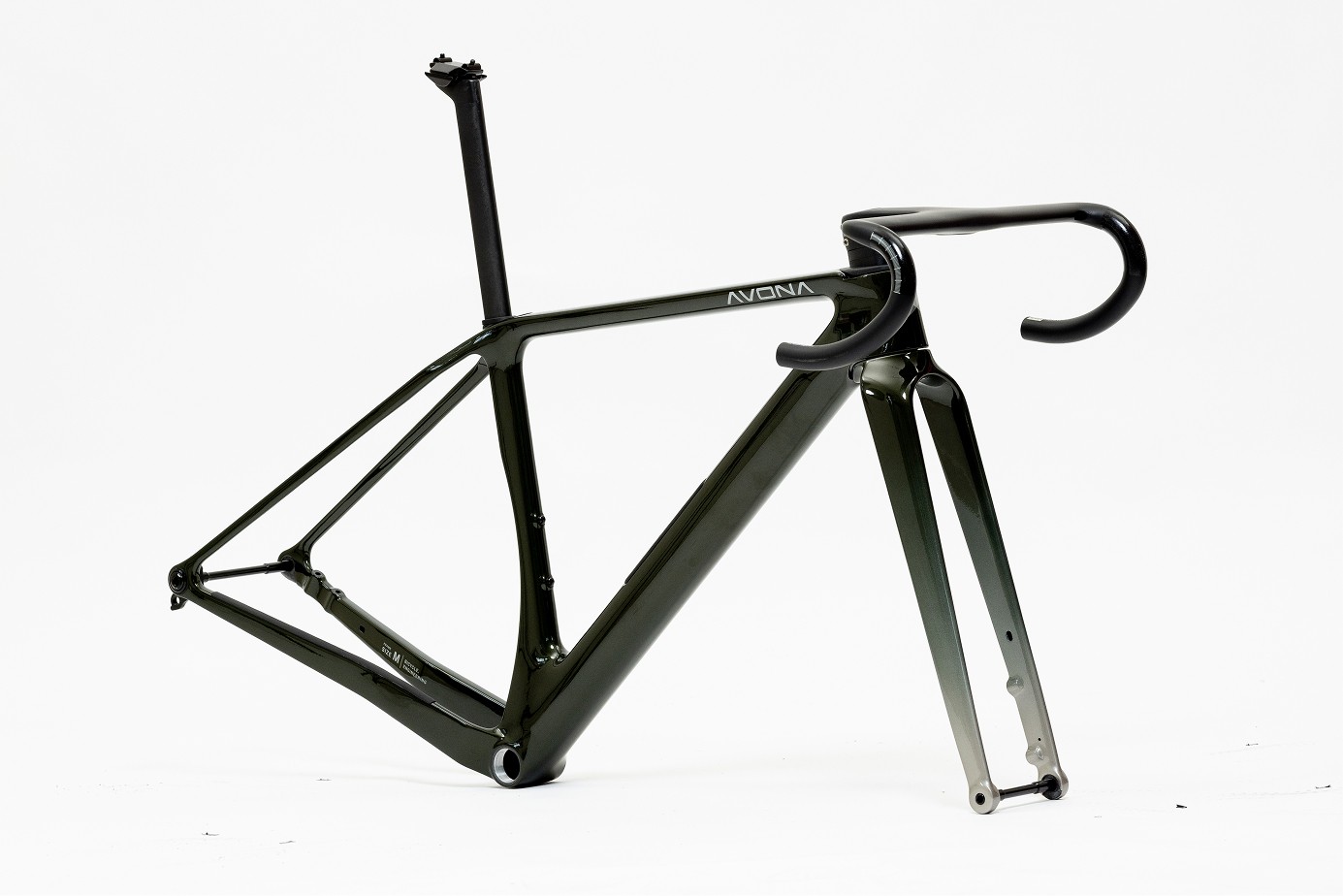

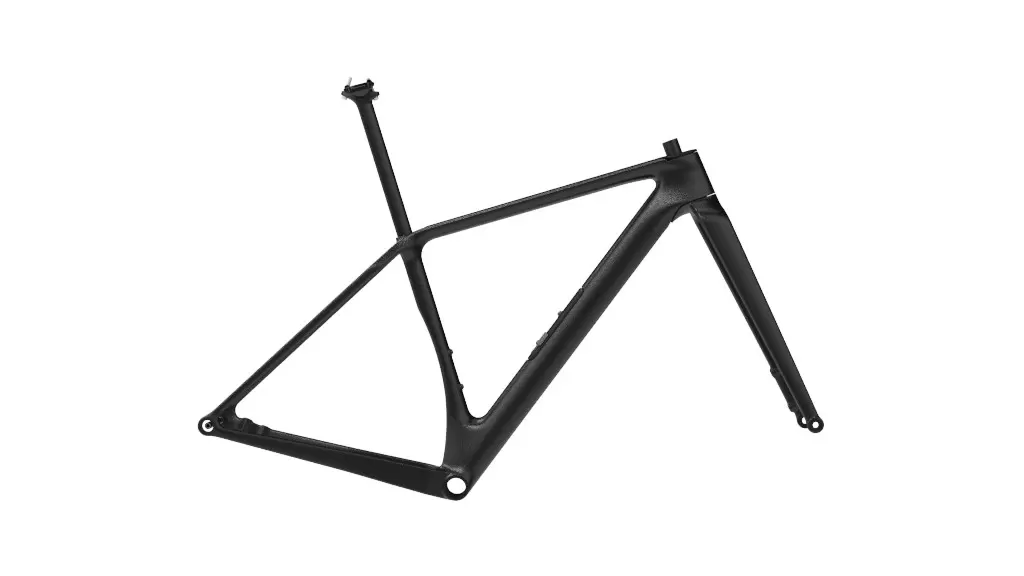

Technical facts
- Frame weight:
- 898 g (M, painted)
- Fork weight:
- 409 g (painted)
- Complete bike weight:
- from 7.78 kg
- Chainring clearance:
- 50T (single Chainring only)
- Tire clearance:
- 55 mm

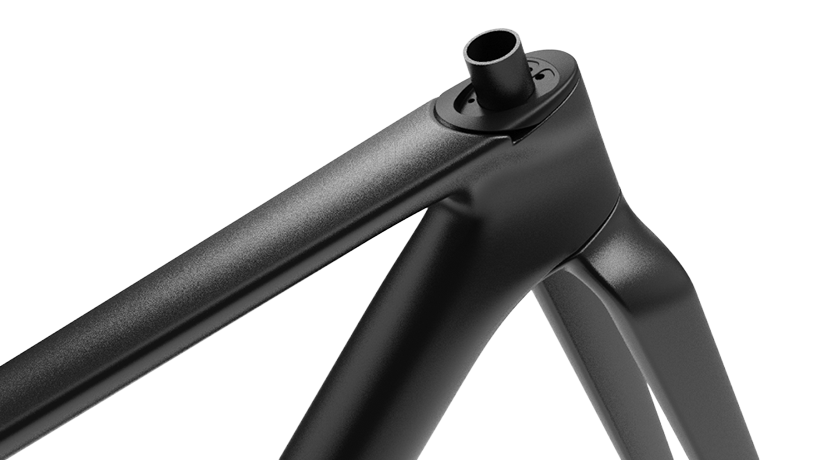

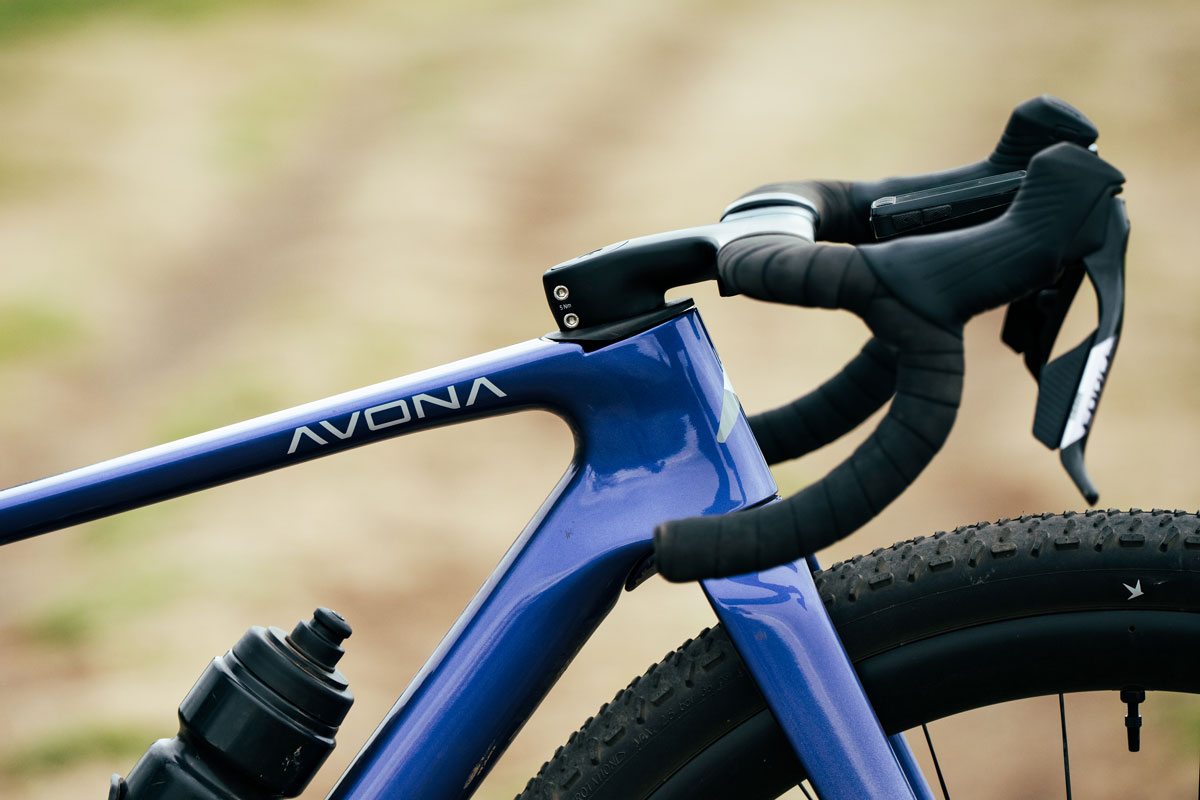

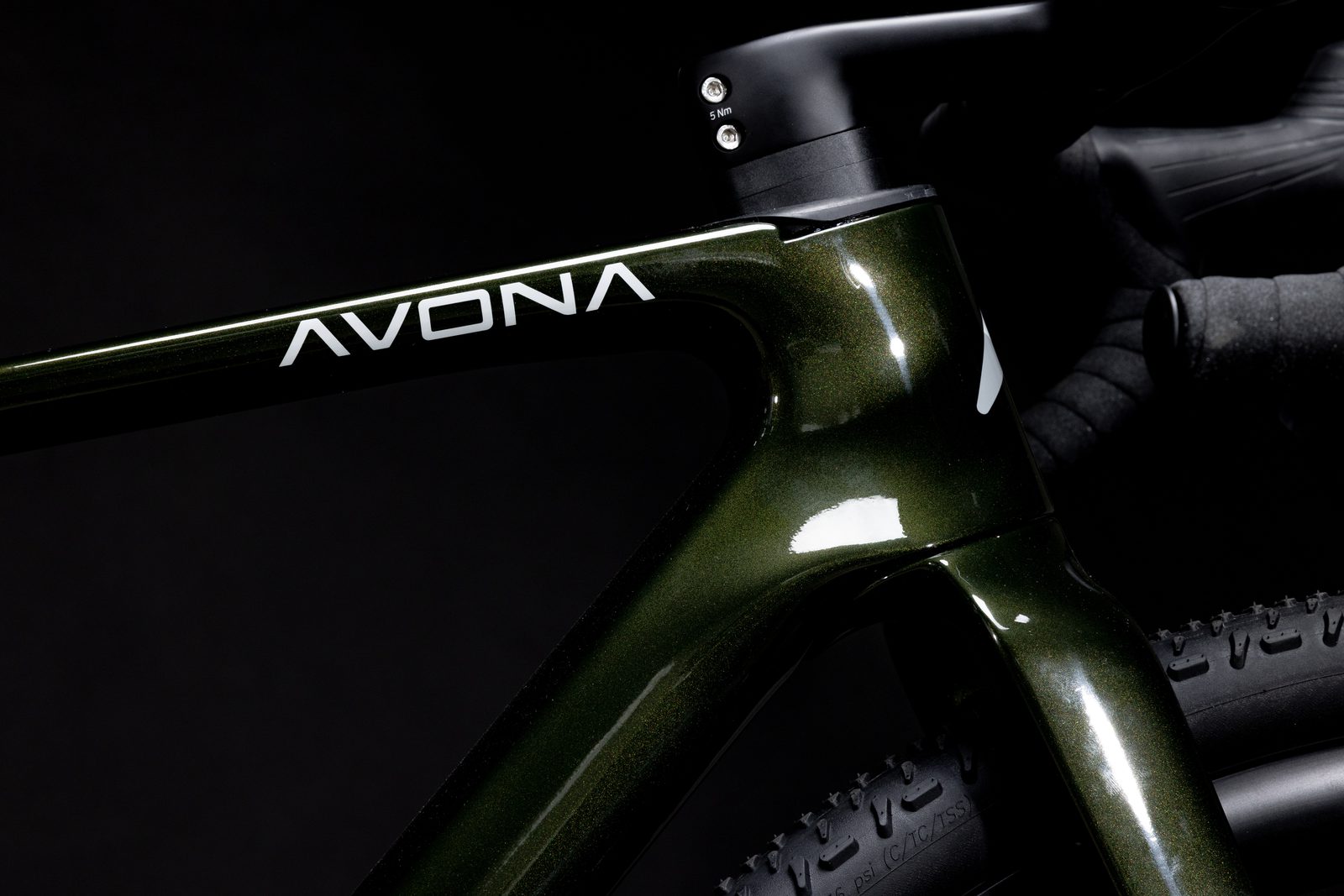

Sealed headset cap
Sealed headset cap shared with Velum and Callis 700c. Enduro 440C stainless headset bearings with lifetime warranty

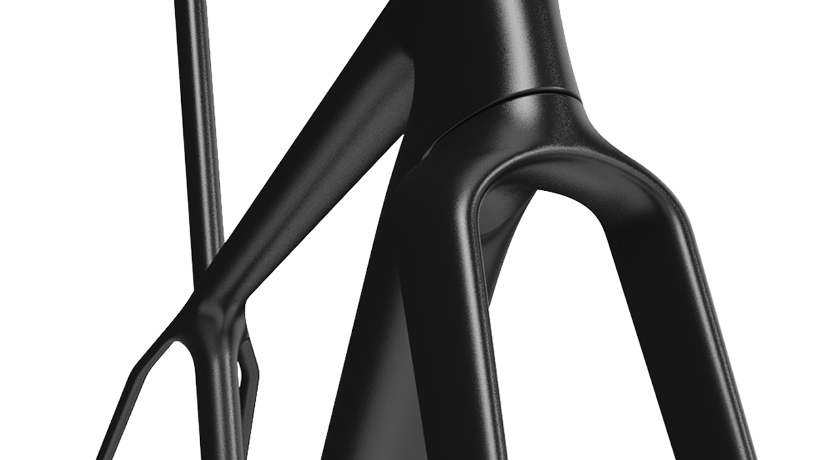

Ready for big tires
From what we have learnt, 50 – 55 mm wide tires are the fastest on gravel, so we optimized for that. Tires are only fast as long as they are not rubbing against mud, so 55 mm tires fit with 6 mm clearance.

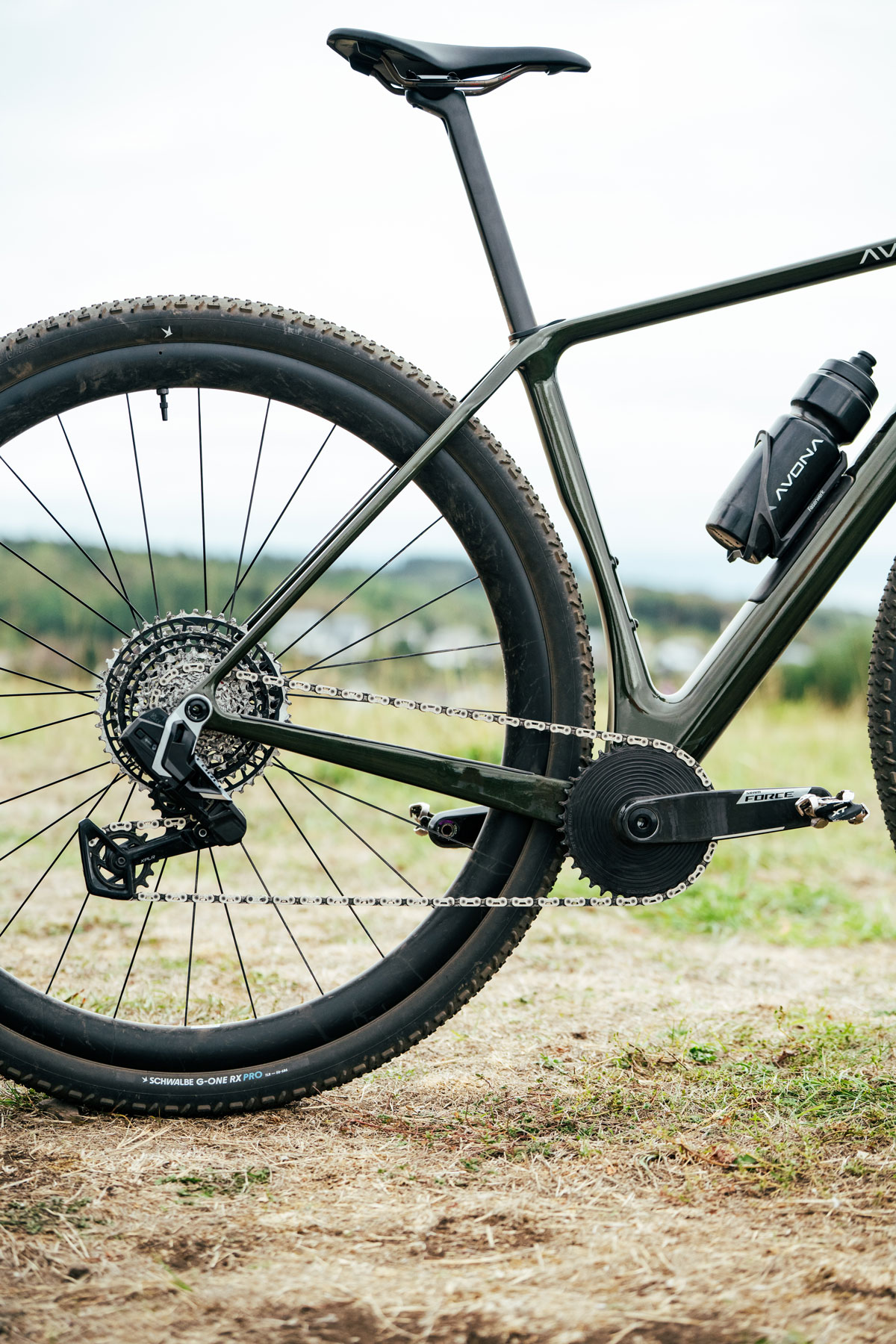

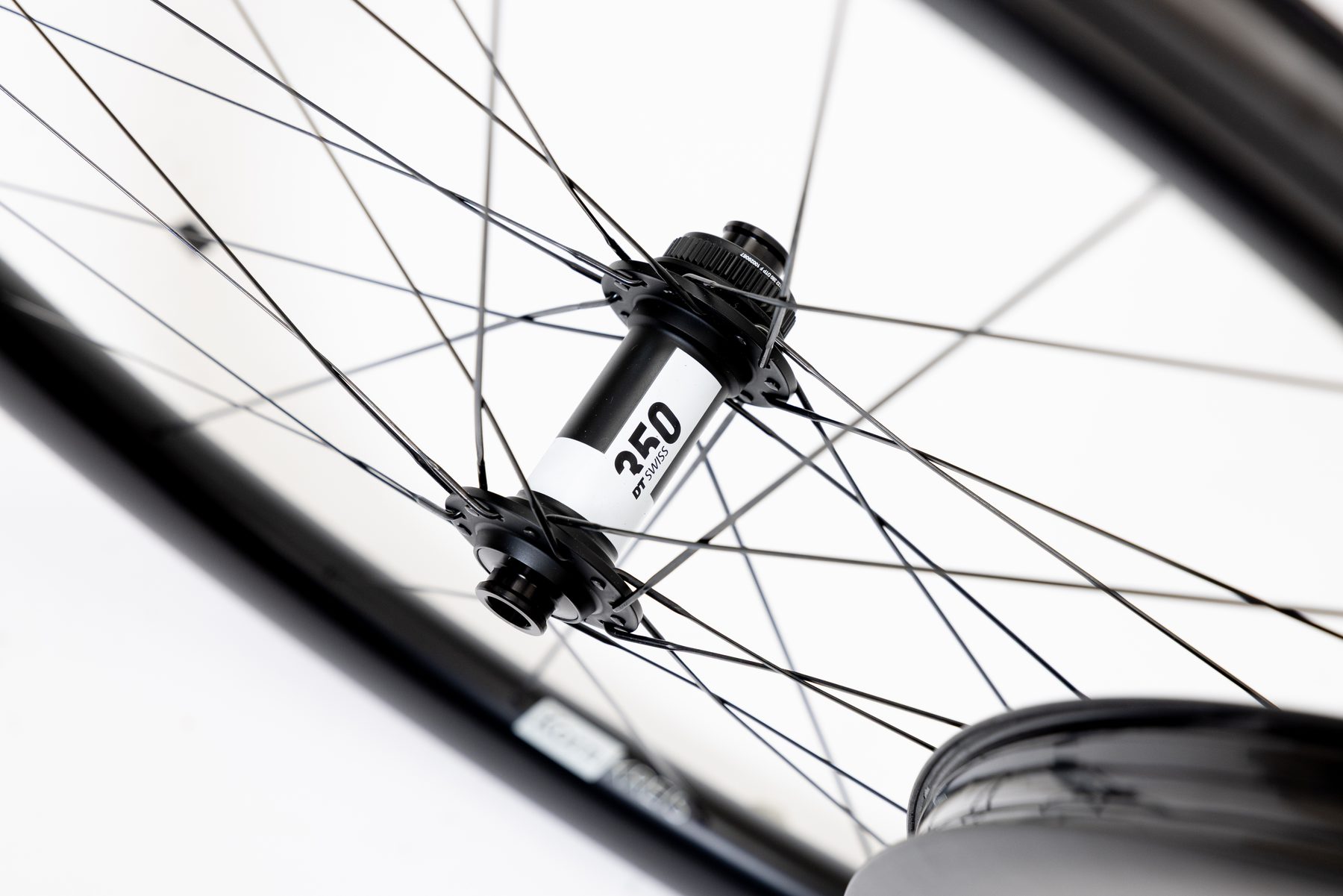

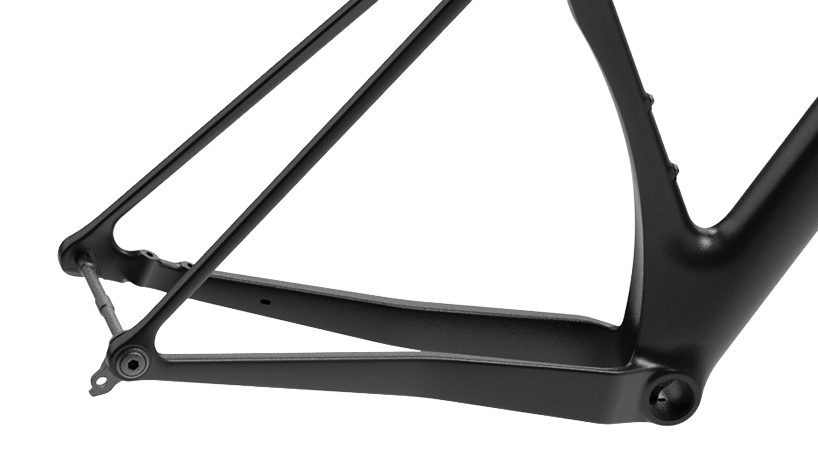

Boost chainline and UDH
12 x 148 rear hub, 12 x 110 front hub for wheel stiffness, 50 mm chainline fits 148 mm rear hub, also leaves more space for more substantial chainstays. UDH (Universal Derailleur Hanger)

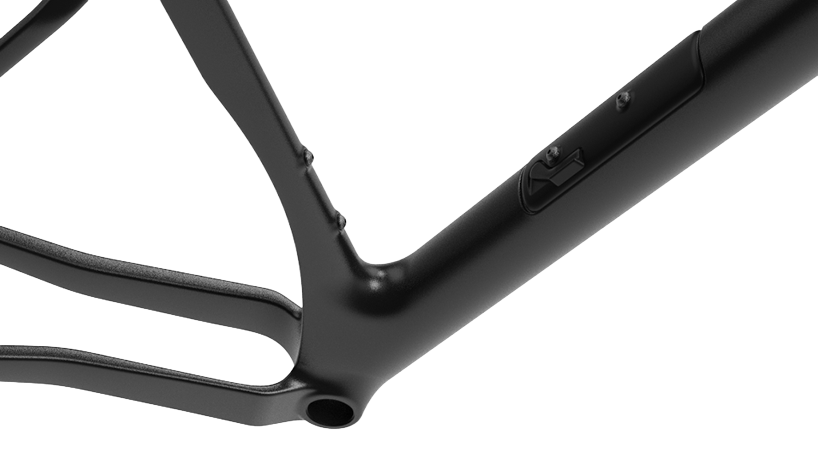

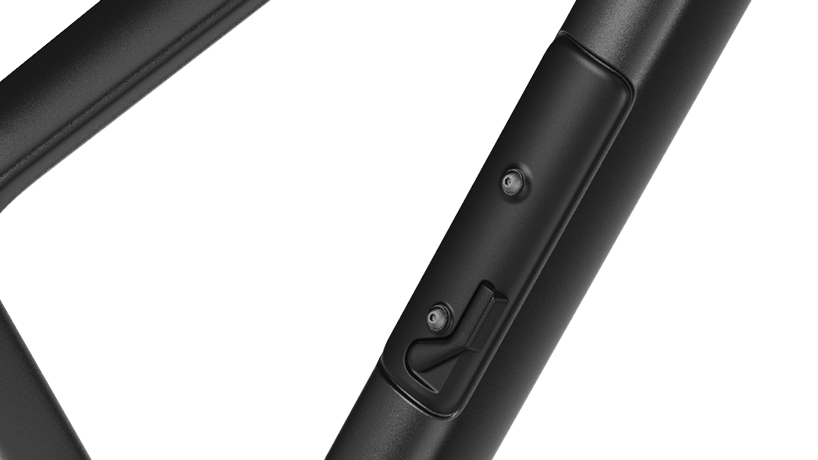

Internal Storage
Integrated storage is more relevant than ever since space elsewhere is more limited
Flatmount 160
Flatmount 160 mm with the option to run 180 mm disc rotors
2 Waterbottle Mounts
Enough space for two large water bottles inside the front triangle
Make it yours
Choose a pre-specified build or customize a unique ride with your local dealer. We also encourage you to have your bike fitted to your ergonomic needs, as we offer all touchpoints in a variety of sizes.

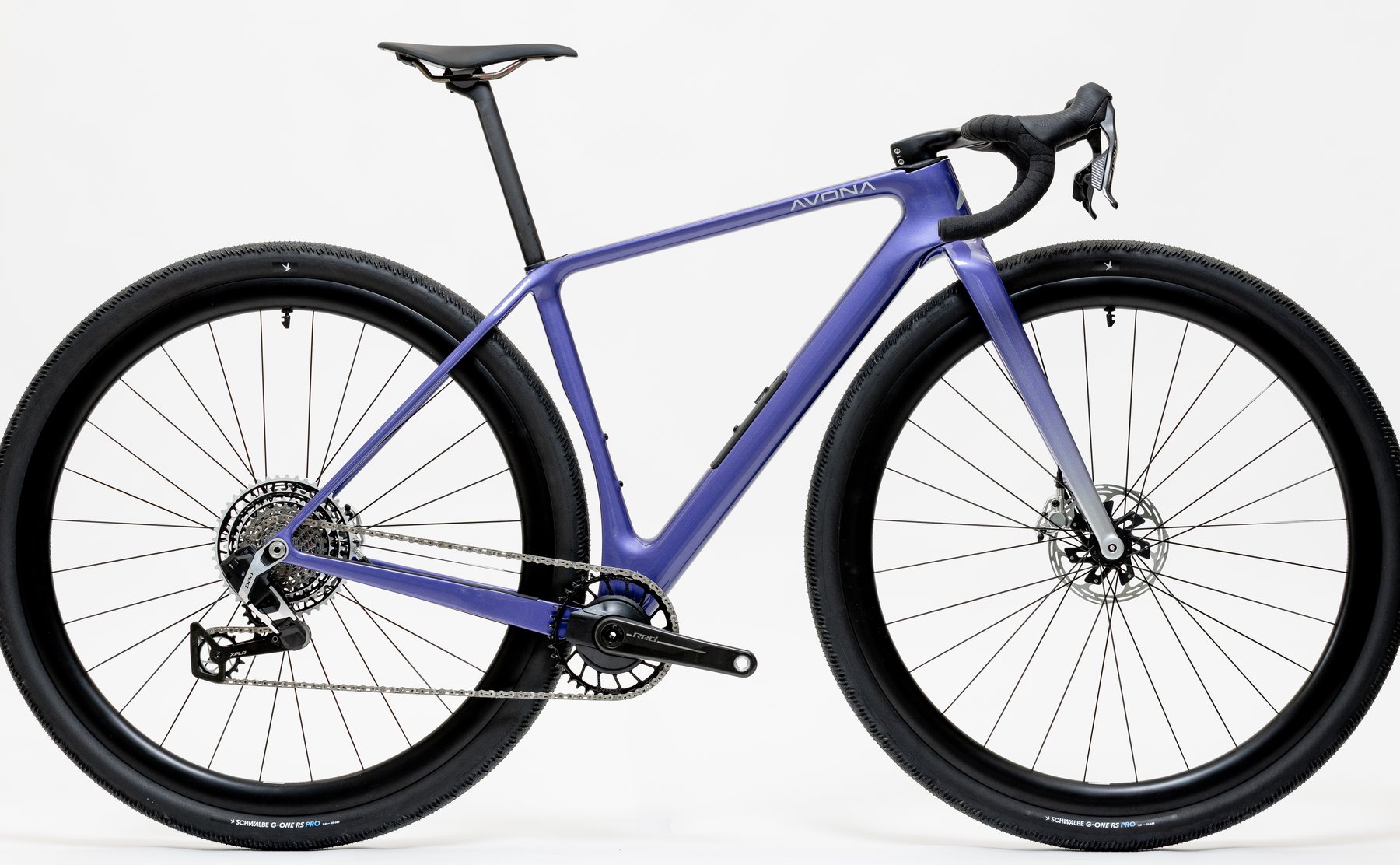

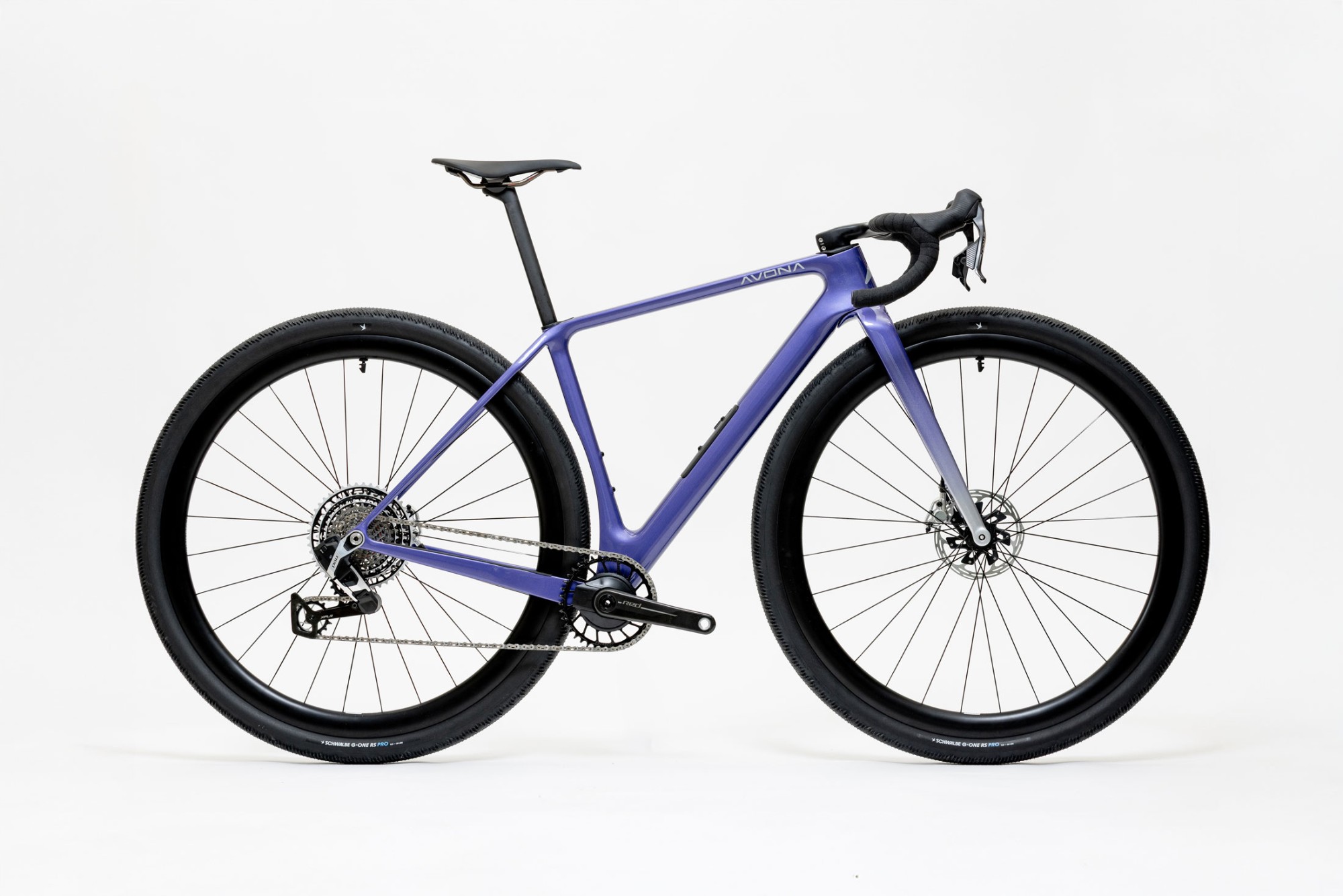

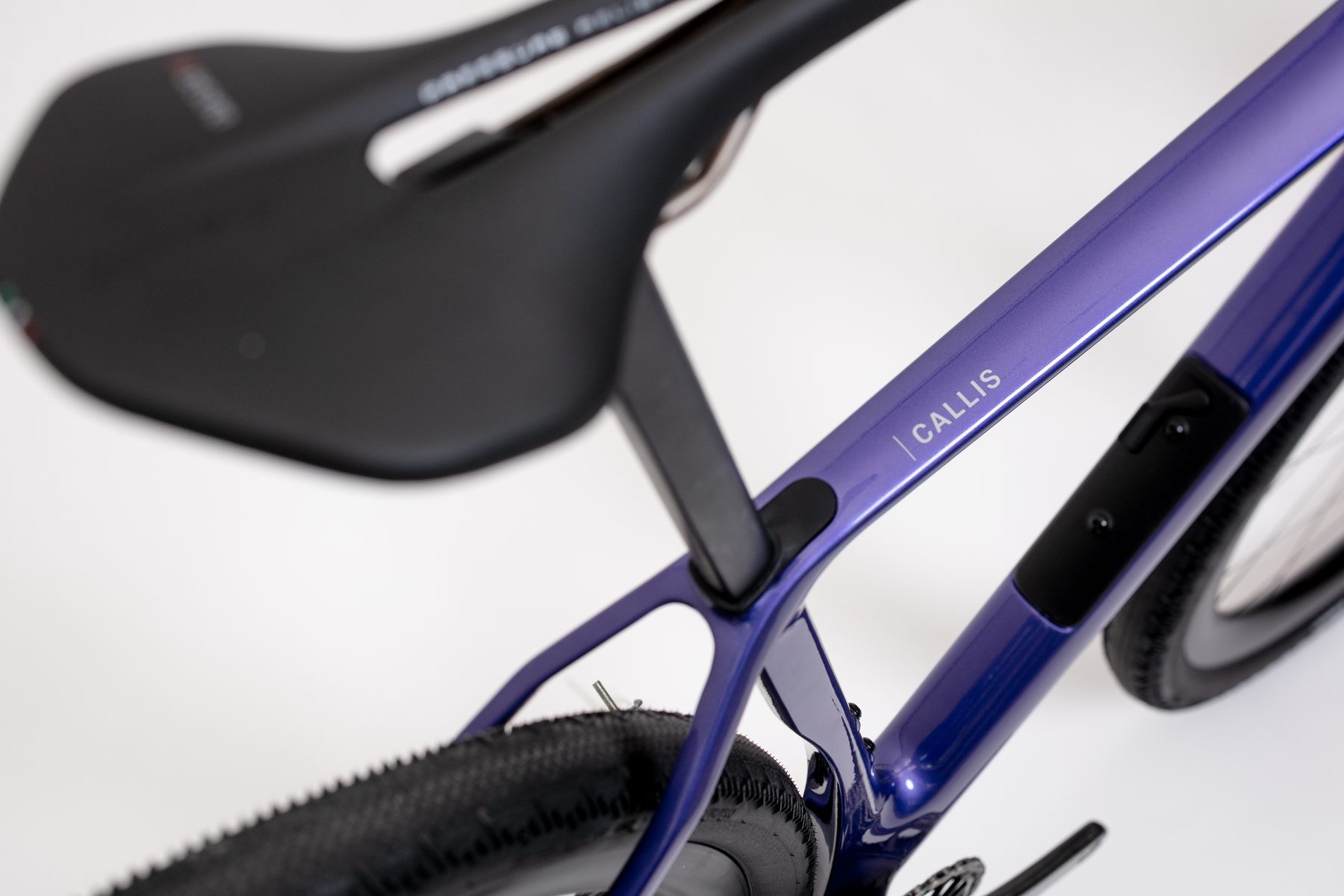

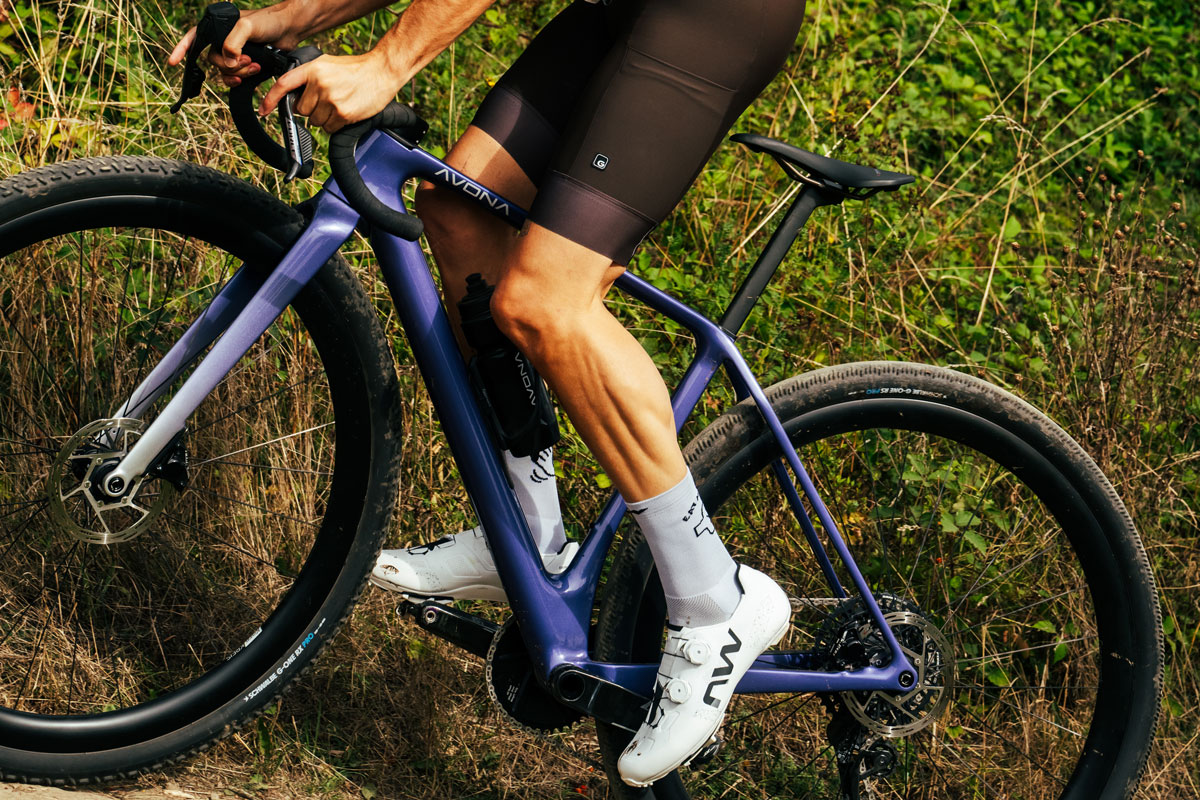

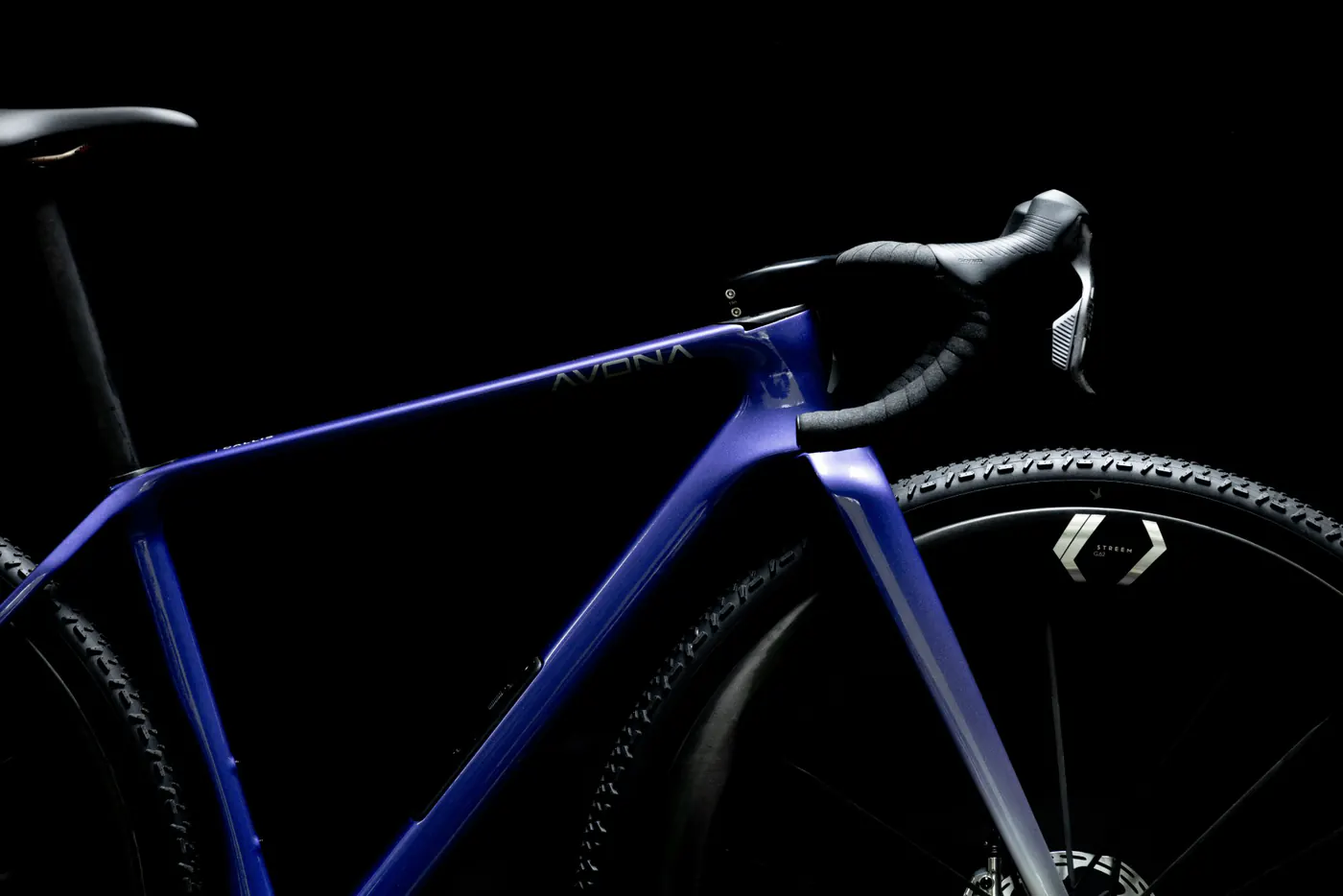

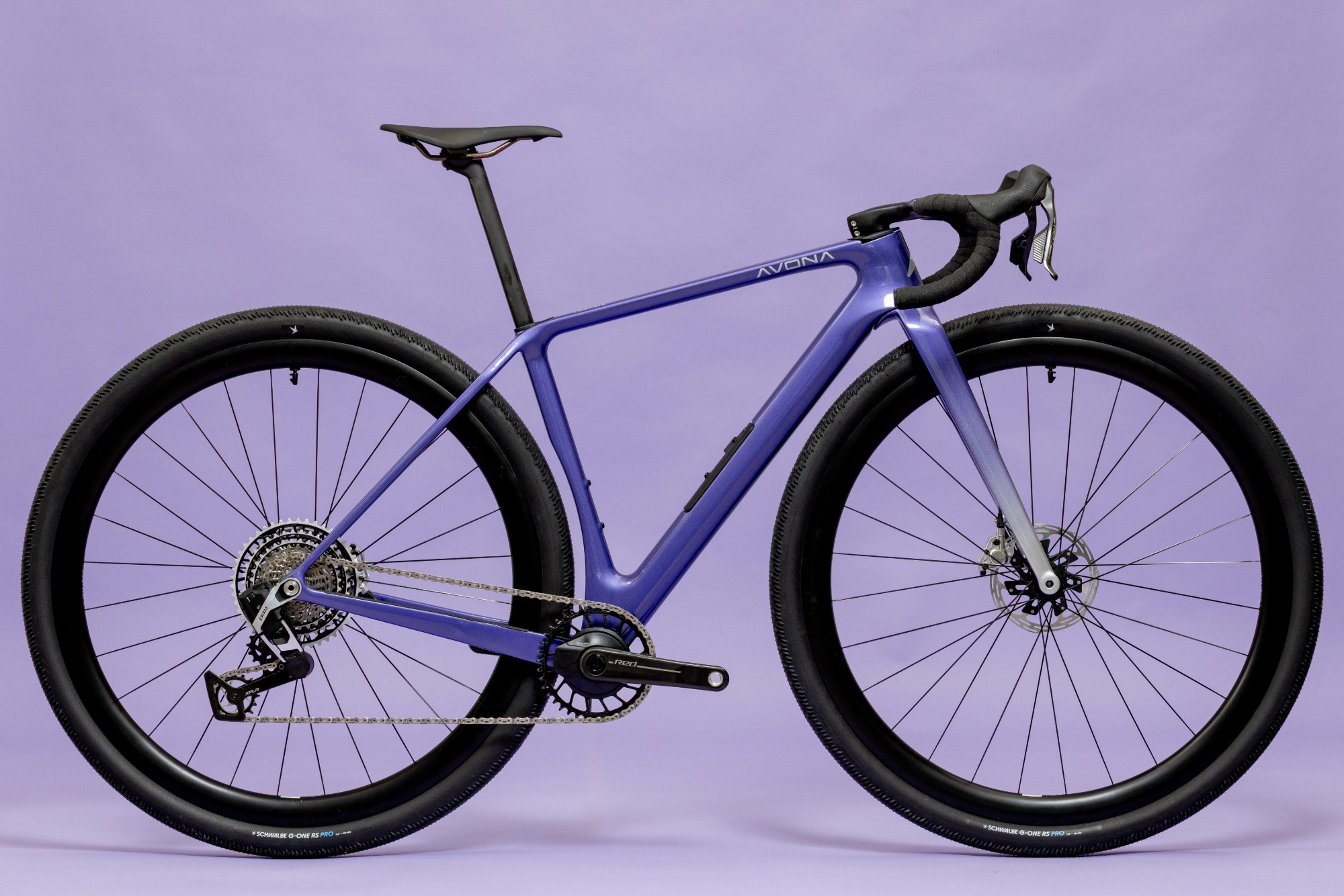

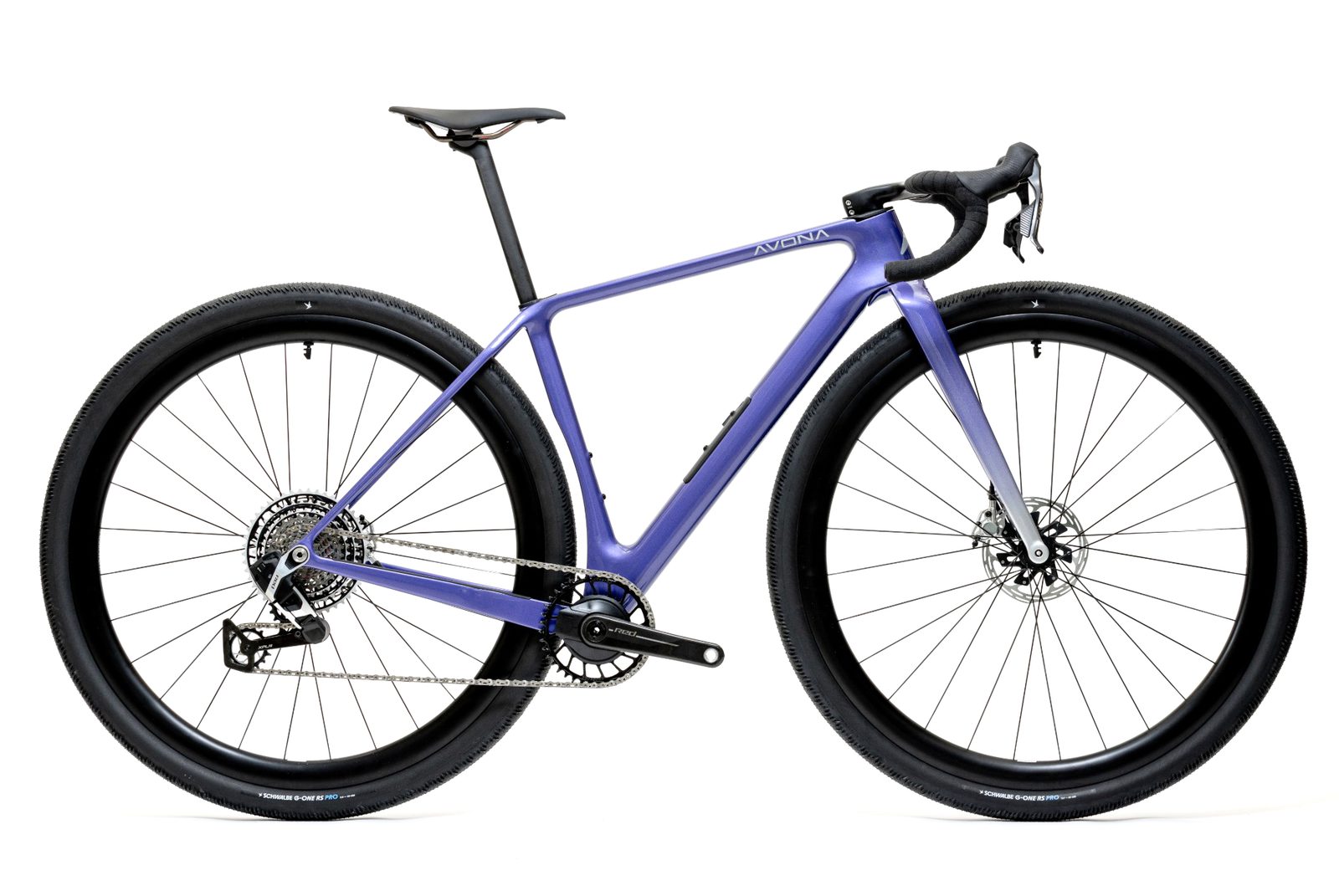

Ultra Violet
- AStack
- BReach
- CSeat tube length
- DTop tube length
- EHead tube length
- FSeat tube angle
- GHead tube angle
- HFork offset
- IFork A-C
- JTrail
- KBB drop
- LChainstay length
- MStandover height
- NWheelbase
- OMax. seatpost insertion
- PSeatpost offset
- QStem length
- RHandlebar reach
- SHandlebar drop
- THandlebar width
Sizes
Fit Guide
One Size,
different fits
Use the 30 mm offset seatpost with a shorter stem to recreate a traditional position with a 74° seat angle. Use the zero offset seatpost with a longer stem for a progressive, forward-oriented position. Choose 15 mm offset for a position in between. The forward-oriented position might put you on a larger frame size than what you would typically ride. Shorter riders who can tolerate a forward position can combine a zero offset seatpost with a short stem to fit a size larger than they would usually ride.
Traditional | 30 mm offset | 74° effective seat tube angle
The - Watt-Saving - Spec - Pack

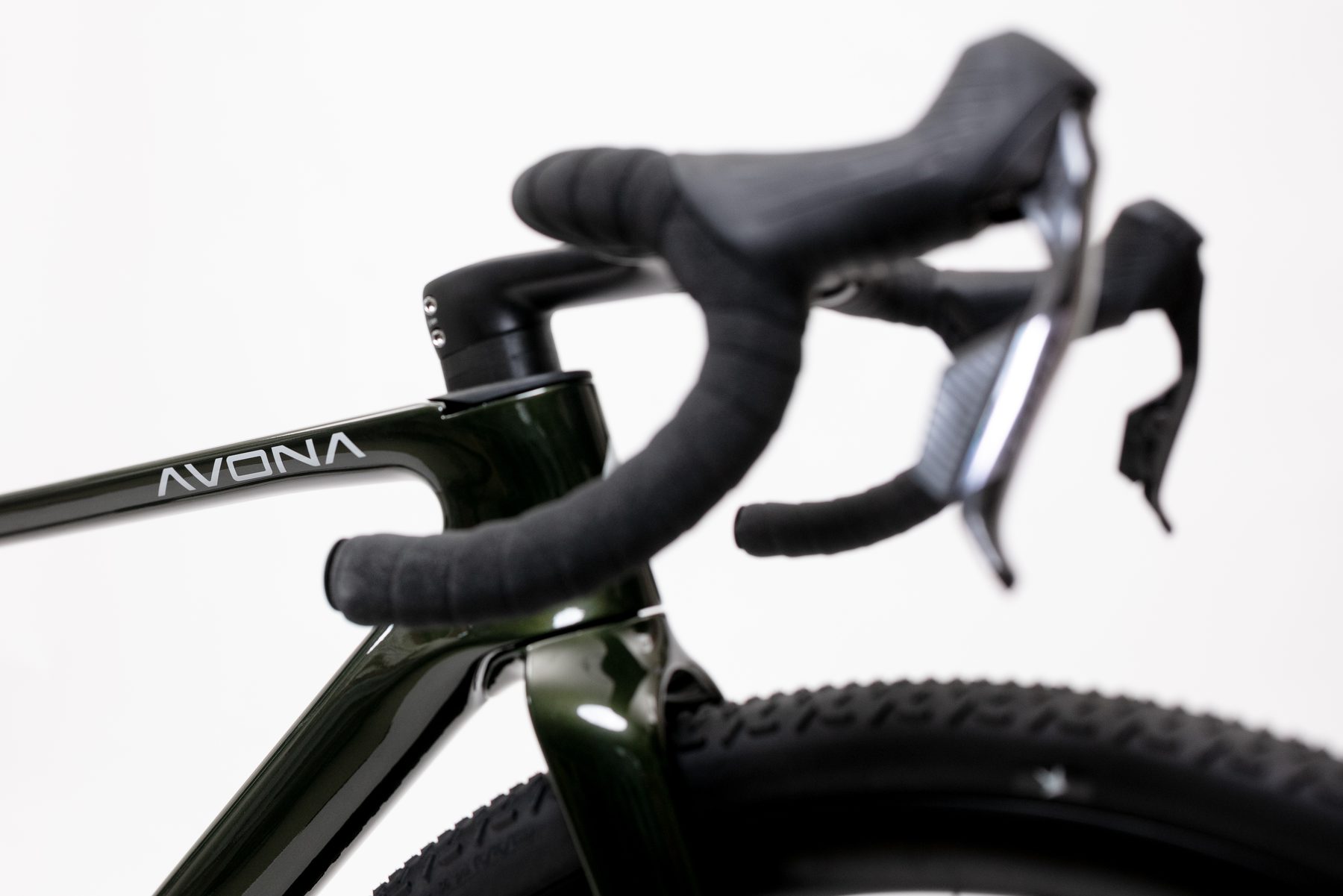

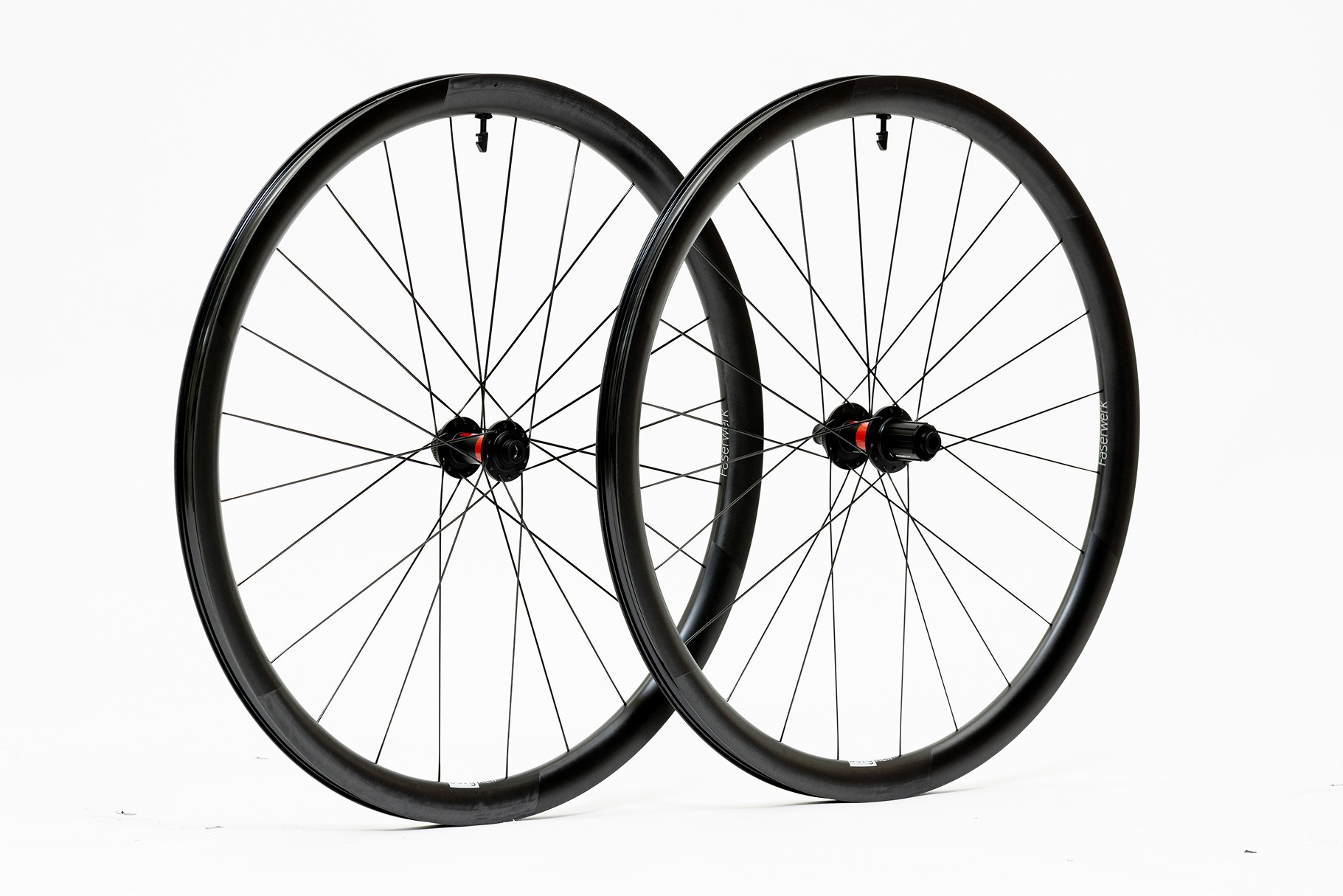

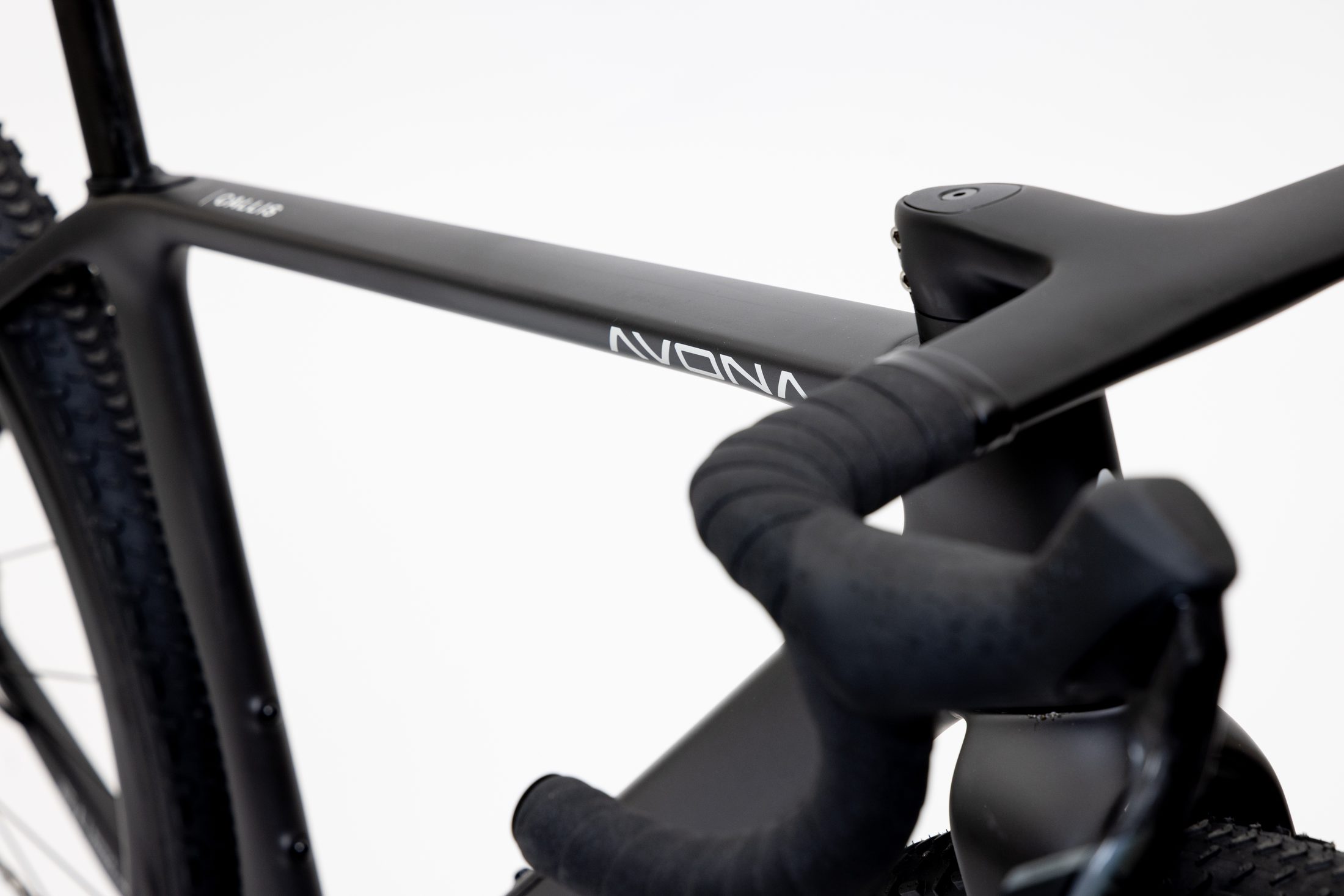

As on all our bikes, we take component choices very seriously, down to the lowest price point. You get aerodynamic gains from the Faserwerk Luftschneider cockpit and Kornkreis wheels. Rolling resistance gets taken care of by Schwalbe's 32" G-One race tires that are set up tubeless and the chain received the Ceramicspeed UFO treatment. In the end, all those choices end up saving Watts additional to the newly gained rolling resistance reduction of the 32" wheel, giving you the fastest possible bike.
Specifications
Technical Information
- Maximum system weight:
- 130 kg
- Crankset:
- 1x max 50T
- Chainline:
- 50 mm
- Hubs:
- 12x148, 12x110
- Brakes:
- Flat mount 160 mm, with the option to go to 180 mm with adapter.
- BB:
- BSA 68 mm
- Rear Derailleur Hanger:
- UDH, Wireless Drivetrain only
- Tires:
- Tires up to 32 x 55 are compatible, depending on rim inner width & tire model.
FAQ
What is the minimum body height to ride a 32" Callis?
Depending on fit preferences, experience shows that riders down to a height of 165cm can fit size medium. If you can tolerate a forward position and combine a zero offset seatpost with a short stem you might fit a size larger than you would usually ride. We highly recommend a professional bike fitting at your local dealer.
Can I mount fenders?
No, you can not fit fenders.
Which cranks are compatible
You can fit Cranks with a 50 mm chainline and Chainrings up to 50 tooth. Single Chainring only.
Can I use a mechanical derailleur?
This bike is optimized for wireless shifting only.
